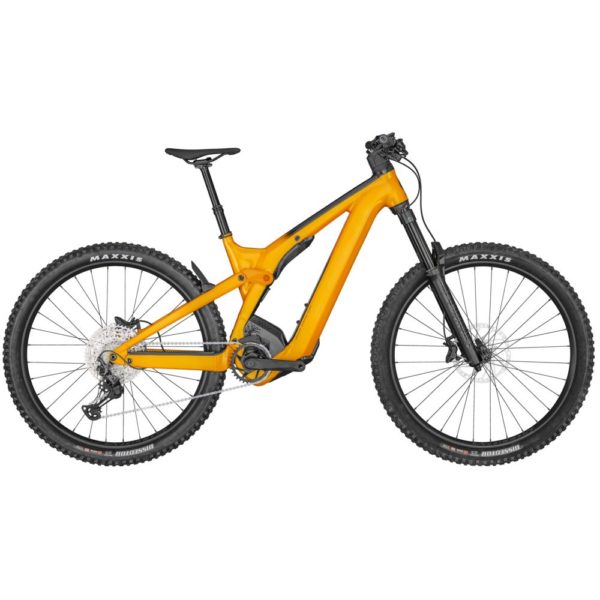

Scott – Patron eRide 920 2022


The all-new Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – boss the trails.

Please note that bike specifications are subject to change without prior notice

Product price
Additional options total:
Order total:
SKU: N/A Categories: , ,


  • FrameAlloy Frame & LinkVirtual 4 link kinematic VLK29x2.6 / Boost 148x12mm UDH160mm travel / Bosch Gen4 / Integr. removable Battery1.8″ Headtube, Central Kickstand MountIntegr. Cable

    TravelFront: 160mm / Rear: 160mm

    ForkRockShox Domain Air15x110mm QR axle / 1.8″ Tapered SteererReb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike

    Rear ShockFOX Float EVOL eRIDE Trunnion3 modes / Lockout-Trail-DescendDPS / Reb. Adj.Travel 160mm / 205x60mm

    Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 modes

    Drive UnitBosch Performance CXEU: 25kmh / INT: 20mph

    BatteryPowerTube 750Wh

    DisplayBosch LED Remote & Kiox 300

    Charger4A Charger

    Rear DerailleurShimano XT / 12 Speed

    ShiftersShimano SL-M6100

    CranksetFSA CK-745 165mm / 34T

    Chainguidee*thirteen / e*spec Slider

    ChainringFSA WB604 / 34T / DM / Steel

    ChainShimano CN-M6100

    CassetteShimano CS-M6100 / 10-51 T

    BrakesShimano BR-MT520 4 Piston

    RotorFront: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm

    HandlebarSyncros Hixon 2.0 / Alloy 6061D.B.12mm rise / 9° / 780mmSyncros Pro lock-on grips

    H’stemSyncros AM2.0 / 6061 Alloy31.8mm / 4° / 1 1/8″

    SeatpostSyncros Duncan Dropper Post 2.531.6mm / S size 125mm / M & L size 150mm / XL size 170mm

    SeatSyncros Tofino 1.5 RegularTitanium rails

    HeadsetAcros / 1.8″ZS66 OD74 / integr. Cable

    Hub (Front)Formula CL-811 / 15x110mm

    Hub (Rear)Formula ECT-1481 / Boost 148x12mm

    SpokesStainless Black

    RimsSyncros MD30 / 32H / 30mm / Pin JointTubeless ready

    Front TireMaxxis Dissector 29×2.6″120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra

    Rear TireMaxxis Dissector 29×2.6″120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra

    LightsBosch Light Cable pre-installed F&R

    ExtrasSyncros eRIDE integrated light fender

    Approx weights in KG26.50

    Approx weights in LBS58.42

    Max. System Weight128 kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
